Versio.io audit log importer¶
Import Versio.io configurations as JSON objects of our REST API and make the changes to them transparent and traceable.
By using the Versio.io audit log feature, it is easy to keep track of any Versio.io configuration changes and adaptations that were made. All configurations are available in a Versio.io overview for every instance. Any changes can easily be noticed in the Versio.io environment.
Configuration¶
You can find the configuration option in Versio.io at Environment settings -> One Importer -> Configuration -> Versio.io audit log.
Here you can edit all existing configurations, create new configurations or delete existing configurations.
To add a new configuration, enter a Name for your importer and an Entity suffix (default: -versio-audit-log) to clearly identify your Versio.io audit log entities.
Note that the Entity suffix is fixed and cannot be changed afterwards.
Click Add to proceed to the configuration.
To edit an existing configuration, click the arrow on the left of your importer name to expand the configuration options.
The following configuration options are available:
| Field | Description | Advice |
|---|---|---|
| Name | Meaningful name | Add the phrase "Versio.io audit log" to identify the importer when viewing the logs |
| Active | Option to activate and deactivate the configuration. Data is only imported if the configuration is activated. | |
| Versio.io API token | Paste in the required API token that is provided by Versio.io | |
| Environment configurations | Select to import the environment configuration of your Versio.io environment | |
| Importer configurations | Select to import the importer configurations of your Versio.io OneImporter | |
| Importer restriction configurations | Select to import the importer restrictions of your Versio.io OneImporter | |
| Executing OneImporter | Select a Versio.io OneImporter to import the data based on the importer configuration. | Requires an installed OneImporter: Installation instructions |
| Schedule time (cron format) | Determine the frequency of imports in CRON format | Learn more about CRON format: https://en.wikipedia.org/wiki/Cron |
Table: Versio.io audit log configuration parameters

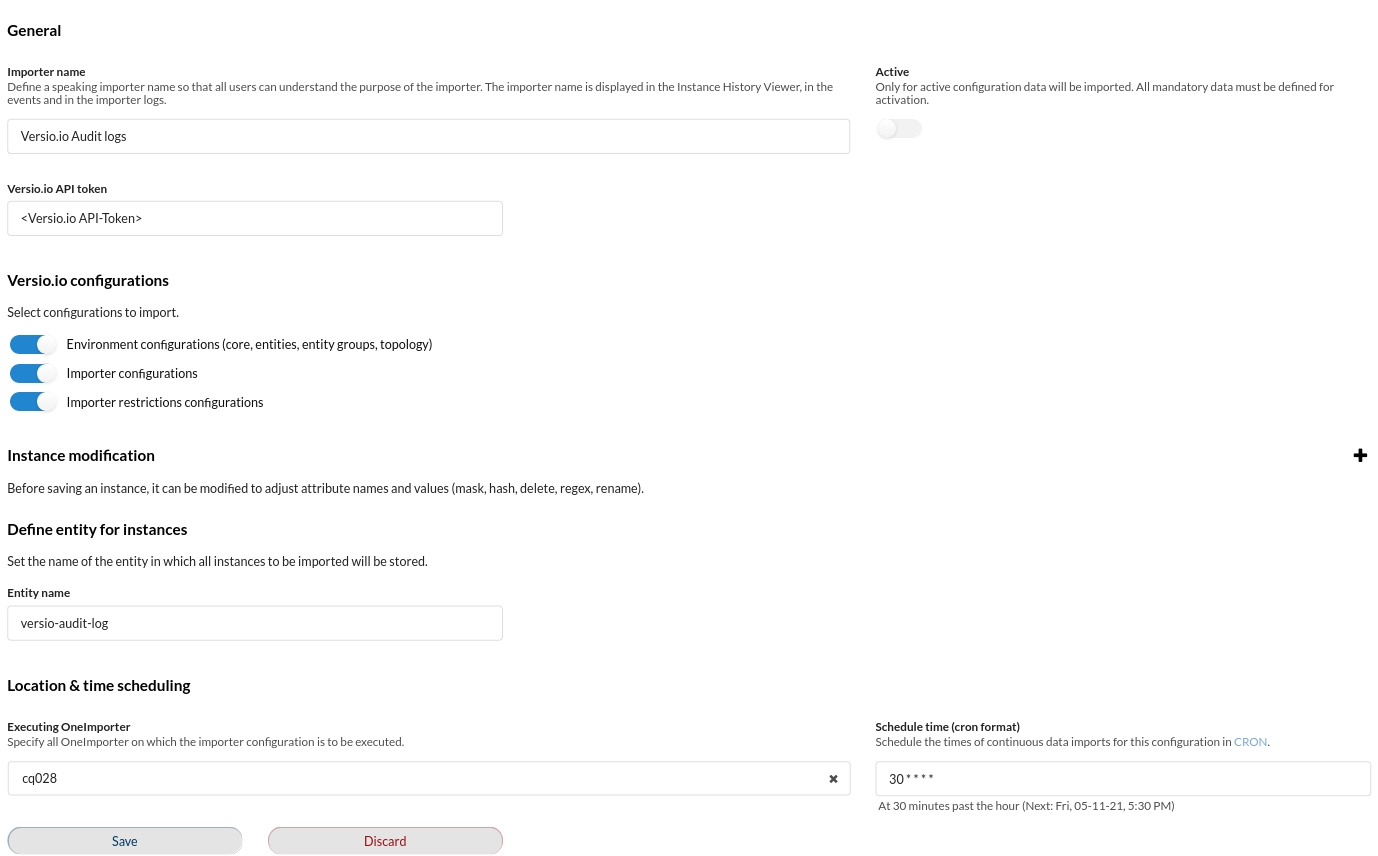

The following image is an example of a Versio.io audit log configuration:
Example¶
The Versio.io OneImporter imports Versio.io audit log data based on a specific configuration into entities with a suffix defined by you (default: -versio-audit-log). To view the imported instances in Versio.io,
select 'Analytics & reporting -> Topology Analysis'. There you can select your specific instance and click it for a detailed view in the instance history viewer.
The following image is an example of imported Versio.io audit log data.
